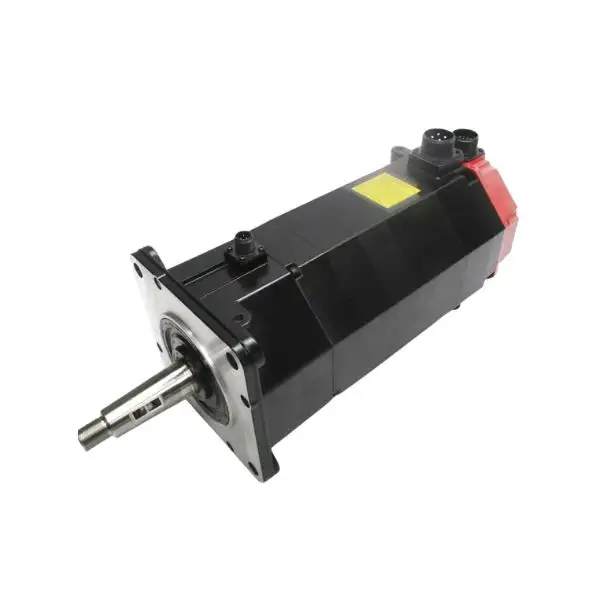

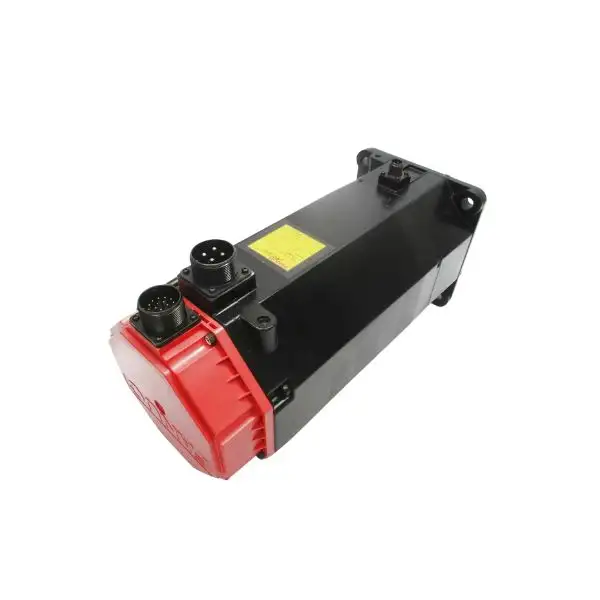

The AC Servo Motor A06B-0186-B675#S014 is a high-voltage AC Servo Motor from Fanuc’s AM30/3000HV series, engineered for precision and reliability in industrial automation. Featuring a Tapered Shaft (TPR) and integrated Brake (BRK), this motor ensures efficient power transmission and controlled stopping for enhanced operational safety.

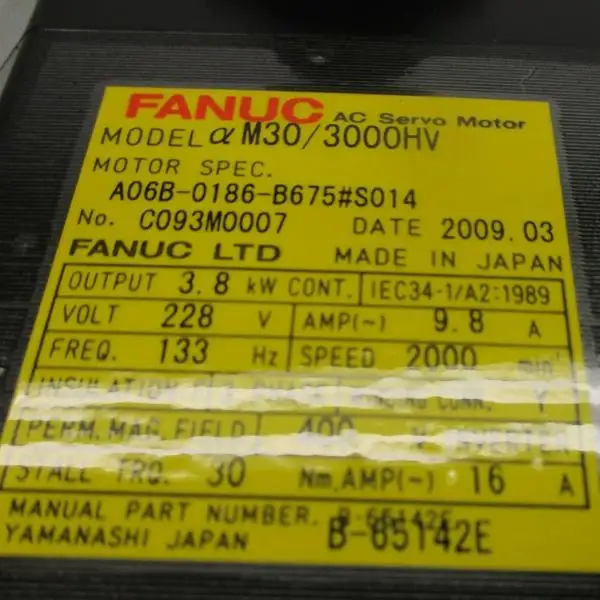

1. Detailed Specifications
- Sell Unit of Measure: EA
- Gross Weight: 36 kg
- Dimensions: 55 x 21 x 28.5 cm
- Model robot: AM30/3000HV
- Continuous Output Power: 3.8 kW
- Rated Voltage: 228 V
- Rated Current: 9.8 A
- Frequency: 133 Hz
- Rated Speed: 2000 RPM
- Stall Torque: 30 Nm
- Stall Current: 16 A
- Insulation Class: F
- Winding Connection: Y (Star Connection)
- Compliance Standard: IEC34-1/A2:1989
- Manufacturer: Fanuc
- Distributor: Robotnext Corp.
- Warranty: 12 months
2. Application of AC Servo Motor A06B-0186-B675#S014 Fanuc
Delivers controlled rotational motion for machine axes in CNC systems, robotic arms, and automated production lines. The tapered shaft guarantees tight mechanical fit and consistent torque, while the brake mechanism ensures accurate stopping or holding in place, essential for safety and process control.
